textfield Widget

A textfield widget to displays the value of a string variable. The user can tap the widget to edit the value.

Attributes:

• var_name: "var1
  • Variable name
  • Required
• initial_string: "initial text
  • The initial value of the variable, if the variable is unset.
• label: "Label1
  • A label to display next to the textfield.
• error: "Message1
  • A message to display next to the textfield, with an alert icon.
  • When this attribute is set, the textfield has a red border.
• auto_capitalize: "names"
  • Automatically capitalize the first letter of each word the user types.
• auto_capitalize: "sentences"
  • Automatically capitalize the first letter of each sentence the user types.
• allow: "all"
  • Allow the user to enter any text and symbols
• allow: "ascii"
  • Allow the user to enter only ASCII text and symbols.
  • This disallows emoji and non-English letters and characters.
• allow: "email"
  • Allow the user to enter only text and symbols used in email addresses.
• allow: "numbers"
  • Allow the user to enter only numbers.
• allow: "tel"
  • Allow the user to enter symbols used in telephone numbers.
• max_lines: N
  • Restrict the user from entering more than N lines of text.
• poll_delay_ms: 0
  • Poll (update) the page immediately when the user changes the text.
  • Use this for search boxes.
• poll_delay_ms: N
  • Poll (update) the page after the user changes the text and N milliseconds passes.
  • Use this to validate text input and show warnings.

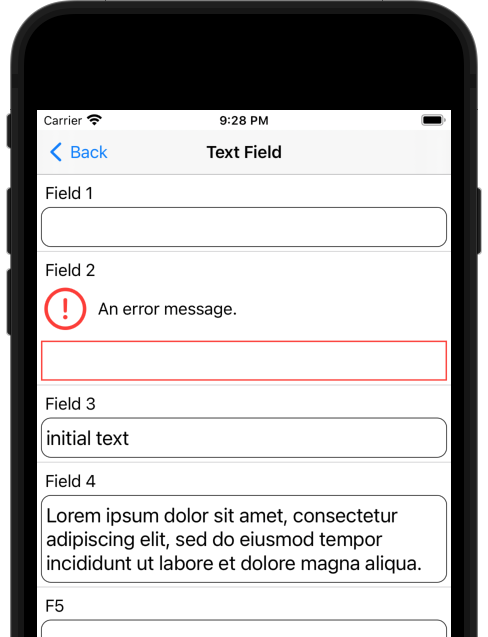

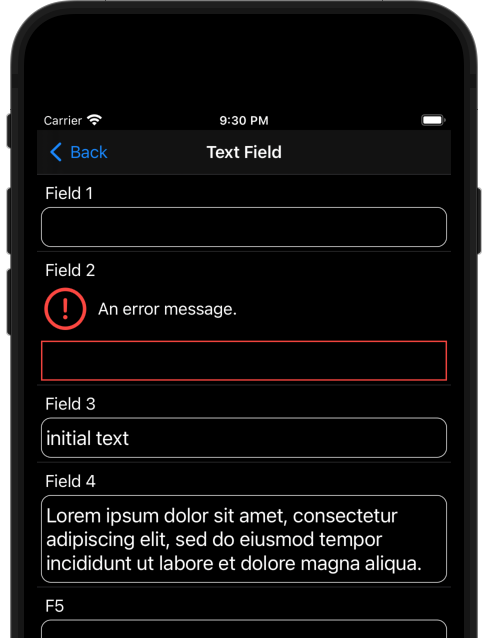

Example

# Ruby
nav_page(title: "Text Field") {
  scroll {
    form(widgets: [
      textfield(var_name: "field1", label: "Field 1"),
      textfield(var_name: "field2", label: "Field 2", error: "An error message."),
      textfield(var_name: "field3", label: "Field 3", initial_string: "initial text"),
      textfield(
        var_name: "mmmm",
        label: "Field 4",
        initial_string: "Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.",
      ),
      textfield(var_name: "field4", label: "F5", allow: ALLOW_NUMBERS),
      textfield(var_name: "field5", label: "F6", allow: ALLOW_ASCII),
      textfield(var_name: "field6", label: "F7", allow: ALLOW_TEL),
      textfield(var_name: "field7", label: "F8", allow: ALLOW_EMAIL),
      textfield(var_name: "field8", label: "F9", auto_capitalize: AUTO_CAPITALIZE_NAMES),
      textfield(var_name: "field8", label: "F10", auto_capitalize: AUTO_CAPITALIZE_SENTENCES),
      textfield(var_name: "field9", label: "F11", max_lines: 1),
      textfield(var_name: "field10", label: "F12", max_lines: 3),
      textfield(
        var_name: "field11",
        label: "Polls page on change",
        poll_delay_ms: 0,
      ),
      textfield(
        var_name: "field12",
        label: "Polls page after change and 1 second delay",
        poll_delay_ms: 1000,
      ),
    ])
  }
}

#![allow(unused)]
fn main() {
nav_page("Text Field", scroll(form((
  textfield("field1").with_label("Field 1"),
  textfield("field2").with_label("Field 2").with_error("An error message."),
  textfield("field3").with_label("Field 3").with_initial_string( "initial text"),
  textfield("mmmm")
  .with_label("Field 4")
  .with_initial_string( "Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua."),
  textfield("field4").with_label("Enter numbers").with_allow( Allow::Numbers),
  textfield("field5").with_label("Enter text").with_allow( Allow::Ascii),
  textfield("field6").with_label("Enter tel").with_allow( Allow::Tel),
  textfield("field7").with_label("Enter email").with_allow( Allow::Email),
  textfield("field8").with_label("Enter name").with_auto_capitalize(AutoCapitalize::Names),
  textfield("field8").with_label("Enter sentences").with_auto_capitalize(AutoCapitalize::Sentences),
  textfield("field9").with_label("Polls page on change").with_poll_delay(Duration::ZERO),
  textfield("field10")
    .with_label("Polls page after change and 1 second delay")
    .with_poll_delay(Duration::from_secs(1)),
))))
}
